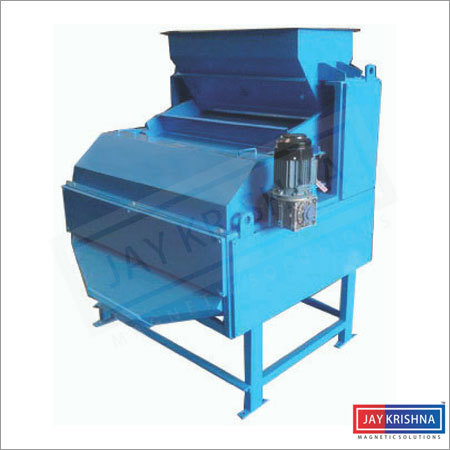

Single Roller Type Magnetic Separators

Single Roller Type Magnetic Separators
Single Roller Type Magnetic Separators
Product Code : 17
Product Description

Roller Type Magnetic Separators


Magnetic Rolls available in 65, 75 & 100mm Dia. & widths up to 1200mm. In three different Magnetic Strengths 8,000 Gauss, 20,000 Gauss and 22,000 Gauss. A 0.5 HP, variable speed DC/AC Geared Motor drive adjustable from 0 to 100 RPM Drives the Roll. Vibratory Feeder with Controls provided for Feeding. Abrasion resistant endless conveyor Belts with thickness of 0.8mm is provided for the Machine.


Our machines are most useful in various types of industrial Minerals applications, such as Abrasive, Refractory and Ceramic Raw Material beneficiation, Alumina, Silica, Carbide, Magnesite, Quartzite, etc. Glass Raw Materials Cleaning Silica sand, Quartz, Feldspar, Dolomite, etc. Ultra High Purity Quartz Cleaning. Graphite Upgrading, Mangense ore benification, Bauxite Upgrading, Diamond ore benification, Selective Separation of Garnet / Ilmenite / Rutile, Zircon, Benification of Iron ore, recovery of Metals from Slag, Removal of Ferro Silicates from Limestone, Magnesite, etc.
