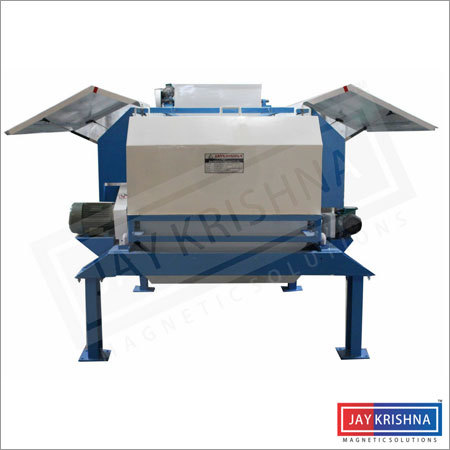

Eddy Current Separator

Eddy Current Separator
Eddy Current Separator
Send Inquiry
Product Code : 03
Product Description

Being a client-centric organization, we are engaged in offering a wide range of Eddy Current Separator which is used to separate non-ferrous metals from mixed waste and other product streams. These eddy currents repel materials with varying degrees of force depending on their composition, thus, aluminum, copper and other metals can be separated from glass, plastic, wood, etc. creating clean product. This Eddy Current Separator consists of a belt conveyor with two tail pulleys. We also offer the separator at pocket friendly price for the end user.

Eddy Current Separator Specification

Model

APPOROXIMATE CAPACITY

USABLE BELT WIDTH

DRIVE MOTOR H.P.

ROTOR MOTOR H.P.

JECS-20

4 TONS/HR.

20”

1.5 H.P

3 H.P

JECS-30

6 TONS/HR.

30”

2 .0H.P

5 H.P

JECS-40

8 TONS/HR.

40”

3.0 H.P.

7.5 H.P


As a client oriented organization, we are involved in providing wide assortment of Eddy Current Separator. This product is required for sorting industrial as well as household waste materials from non ferrous metals. Basically, it acts as a cost effective solution for recovering higher amount of useful materials from waste substances. Its advanced mechanism enables it to remove non ferrous items by applying great force and the applied force depends on the structure of waste objects. This magnetic item is instrumental in efficient sorting of copper, aluminium and other non ferrous metals from wood, plastic and glass. What is more, it helps to raise the purity level of non ferrous metal based scrap materials. Customers can obtain this item at reasonable price range.

Working Principle

As part of its mechanism, the in built magnet blocks of its rotor revolves at around 300 rpm of speed to generate eddy current. This built in magnet is made of high intensity rare earth magnet or ferrite ceramic magnet. The produced eddy current helps to generate repelling force when it comes in contact with charged particles of different metals. The separation work is executed as per the density and resistance properties of metals.

Design

The provided Eddy Current Separator is equipped with a belt conveyor with dual tail pulleys. The driving drum of this separator is controlled via a geared motor and the moving speed of its belt can be modified by its continuous controlling system. The head pulley of this product consists of a powerful magnet with high rotational speed. The modular structure of this machine is designed with splitter section and feeder for its trouble free relocation and fitting purpose.

Maximum Frequency

The precisely developed rotor has been installed inside this machine to improve its sorting function. This rotor has multiple numbers of poles and it moves at exceptionally high speed to separate aluminium can within a short duration.

Applications

  • Sorting of chips with non ferrous content
  • Recycling of glass cullet and extruded aluminium
  • For recovery of aluminium scrap materials and non ferrous metal
  • Processing of wooden waste
  • For recovery of brass, copper and stainless steel from dust and automobile shredder residues
